| MOQ: | 협상 |
| 가격: | USD11~USD55 |
| 표준 포장: | 표준 패키징 또는 고객의 요구조건 |
| 배송 기간: | 20 일 |
| 결제 방법: | T/T 미리 또는 30% 예금, 해상 배송에 대한 B/L 사본을 기준으로 균형 T/T |
| 공급 능력: | 산업 램프를위한 200000 램프 및 상업용 조명을위한 100,000 램프 |

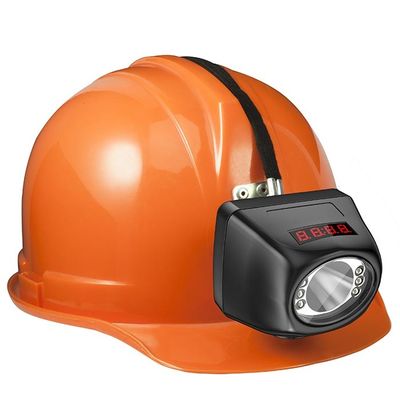

ATEX Certified Explosion-Proof Cap Lamp 5.2Ah Rechargeable Waterproof LED Headlamp
Technical parameters:
| Features | Value | Unit | |
| Light source | LED Power | 1 | W |
| Luminous flux | >140 | Lm | |
| Life time | >100,000 | hour | |
|
Li-ion battery
|
Rated capability | 5.2 | Ah |
| Rated voltage | 3.7 | V | |
| Continuous working time | >15 | hour | |
| Charging time | <6 | hour | |
| Life time | 1000 | circle | |
| Charing voltage and current | 4.9V@1A | ||
| lamp lighting degree (distance 1 meter) | >7000 | Lux | |
| Accessory light Usage life hour | 100000h | ||
| Short circuit protect time | <15ms | ||
| Weight (with battery) | <215 | g | |
| Outline dimension | 77*61*55 | mm | |
| IP Class | IP67 | ||
| EX MARK : |
IM1 Ex ia I Ma |
||
Description of Wireless Mine Headlamp Golden Future KL4.5LM Coal Underground Mining Head Lamp LED Light Miner Lamp
KL4.5LM is a new style of cordless cap lamp with digital device to show the lamp number,time,and battery balance, and remind user to recharge it when the power is not enough.
American CREE 1 watt LED as main light and 6pcs auxiliary ligh;
More than 7000 lux for main light, continuous lighting time is more than 15 hours.
5.2Ah li-ion rechargeable battery.
All in once case with bulletproof PC housing.
CE/ATEX/SABS/TUV/MSHA approved
Advantages of IP68 Waterproof KL4.5LM Digital Cordless Mining Light Rechargeable Miner Headlamp
Safety: All the housing materials are bulletproof PC, which is very strong to afford heavy impact or high dropping.
MCU controlled protection in electrical short-circuit, automatic power-off on the socket ,
it is explosion proof, waterproof and dustproof, and ATEX Certified for use in explosive atmospheres such as coal mines.
Reliability: Tough housing, optimized design, a solid LED light that uses high efficient IC drivers guarantee the product is durable and strong.
The durable Li-ion battery has an over-charge and over-discharge protection system to protect the battery from over charge or over discharge.
Efficiency: more than 15 hours at full brightness for main light, and more than 60 hours continuous lighting for auxiliary light.
Battery usage lifetime about 1000 cycles
Environmental: The cap lamp is made from environmentally friendly Li-ion battery and other non hazardous materials as per RoHS Directive.
Economy: no requirement to replace bulbs, lifetime of li-ion battery is three times longer than lead-acid cap lamp and saving in maintenance makes the product more compatible in price
Charger input power: AC100-240V / 50-60Hz. Charging time: within 5 hours,
Type of protection: IM1 Ex ia I Ma
Type of Certificate: CE/ATEX, SABS (KL4.5LM), MSHA
Protection category: IP68
CERTIFICATION:
Packing information:
20sets/carton, GW: 9.5KG, carton size:34*40*23cm
Our service:
We can provide good quality, quick delivery, AQ discount for all customers.
1. For all your inquires, we will reply you in detail within 24 hours.
2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3. We have sales who have engage in LED many years to provide custom-made the sales solution.
4. We have engineers who has the experience of projects to solve the problems of technical.
5. We have very experienced R&D and we have strong ability to do ODM projects.
Looking forward to cooperating with you.
FAQ:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q: 5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 6. How to make this payment?
A: TT, Paypal, Western Union.
Q: 7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available.
Age test picture:
WORK SHOP
|
|
